The Differential pressure switch remains one of the best devices that use for the differentiation of the pressure to operate an electric switch through a pre-set point. That will be some difference between the two positive and two negative pressures, in that one will be the positive and negative or atmospheric pressure.
The Pressure Switch Switzer electric switch will be utilised to start and stop the motors and fans, also used to close or open dampers and sound alarms, louvres, drop a warning signal, etc.
Switzer differential Pressure Switches will be built for low and extremely low-pressure differentials varying from .01″ liquid column on 50 psig. The selection of Switzer precision-pressure switch types are allowed within specific ranges.
- Specific Applications of the engineering differential pressure switch range will include the options for the neutral, liquids and aggressive gases, to assure the proper stability for the application. It is mainly used for tracking the chamber vacuum as well as overpressure
- Also, it helps to monitors and controls the pressure-sensitive processes
- Flow monitoring

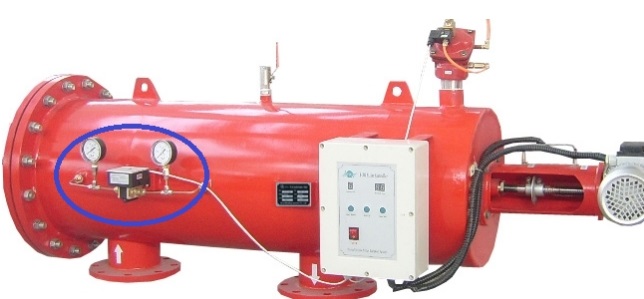

- Filter/level monitoring
How does differential pressure switch work?

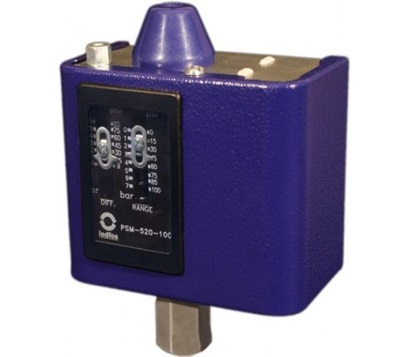

Indfos differential pressure switches work by breaking and building an electric circuit that changes the power given to an electrical appliance. They perform that by placing an electrical path to switch off that power and installing an electrical path to switch on the ability to the machine.
One of the best differential switches used to work by making and breaking the electrical contact, which is based on the pressure. While a specific range of pressure switch at the switch had reached, one of the switches that activate to build or break that electrical circuit. Those switches will be activated when this pressure add, or if pressure is eliminated, and when the circuit is turned on as well as off during the specific level of this pressure had attained.
Differential pressure switches is a switch which used to converts some of the change toward the pressure within the two systems inside an electrical use. These two systems are regularly monitored; also, it is relative to pressure which is measured. Suppose when the differential pressure is off, then it turns on, and suppose if it is on, then it turns off.
It has different uses which are used in various industries. Differential pressure switches are utilised to sense the pressure differences within the two points toward the system as well as actuate if any predefined difference occurs met. Over the numbers of types of these pressure switches, it uses three different types. They are a sensor, and spring for defining the scale of the setpoint and the snap-acting micro-switch.
While these pressure switch differences between these two ports will raise too high, that force on this diaphragm and bellows defeats the tension produced in that spring, that may produce an axial flow balancing arm and similar mechanism.
